Introduction
PES-2401

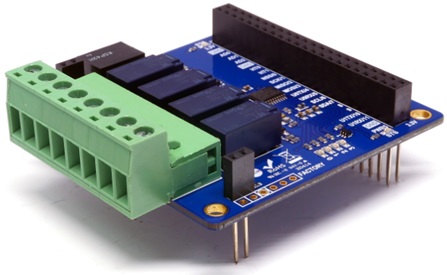

PES-2401, 4-Port Relay Output board, is one of smart expansion boards for PHPoC boards. You can turn some devices on or off by using this board.
Highlights of PES-2401
- 4 NO(Normal Open) relays
- Output interface: 8-pole terminal block(S type, T type)
- Output maximum Voltage: DC 30[V]
- Output maximum Current: 2[A]
- Current consumption: approximately 160[mA]
※ Caution: A PHPoC Board is required to use this PES-2401 board!
What is the Smart Expansion Board?
A smart expansion board has own devices and firmware unlike the other expansion boards. This board communicate in a master-slave protocol through the designated port. Two or more smart expansion boards can be connected to one PHPoC board and each of them required to be setting a slave id.
