I2C Overview
PHPoC provides I2C, two lines bus interface.
I2C Data Structure

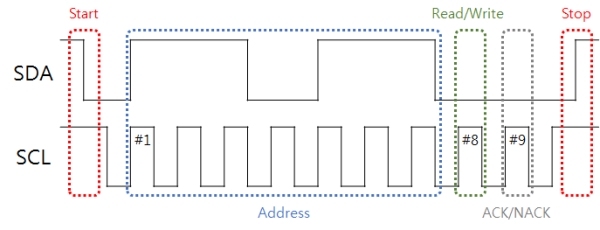

I2C data is always sent in 8-bit unit. Structure of I2C data is as follows:
Start and Stop Conditions
Start and stop conditions of I2C are as follows:
| Condition | SCL | SDA |
|---|---|---|
| Start | HIGH | HIGH > LOW |
| Stop | HIGH | LOW > HIGH |
Slave Addressing
PHPoC uses 7-bit slave addressing. The LSB of address byte defines that the frame is for reading or for writing.
Read / Write Conditions
I2C communication consist of reading or writing data from a master.
| Division | SCL | SDA |
|---|---|---|
| Read | 8th bit - HIGH | HIGH |
| Write | 8th bit - HIGH | LOW |
ACK / NACK
Both an I2C master and a slave send acknowledgement (ACK) when receive 8 bits data. Correct acknowledgement is implemented by output HIGH on 9th bit. If the state of bus is HIGH, has not received data yet.
| Division | SCL | SDA |
|---|---|---|
| Acknowledgement(ACK) | 9th bit - HIGH | LOW |
| No Acknowledgement (NACK) | 9th bit - HIGH | HIGH |
I2C Commuication Scenario
4 different scenarios of I2C communication are as follows. In the scenarios below, white background areas are a master's output and gray background areas are a slave's output.
Success to Write Data
Fail to Write Data
Success to Read Data
Fail to Read Data
