Online Upgrade

You can upgrade firmware online if your PC is connected to the Internet.

Procedure

1. Connect PHPoC product to your PC via a USB cable.
2. Run PHPoC Debugger and click connect () button after choosing the right COM port.

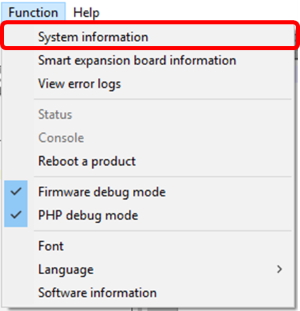

3. Click the [Function] > [System information] menu.



4. Select the [Product/Firmware] tab and click the [Check for update] button on the System information window.



5. Click [OK] after uploading F/W is finished.



Upgrading F/W of Smart Expansion Boards

You can upgrade firmware of smart expansion boards if they are connected to your PHPoC board.

1. Connect PHPoC board with smart expansion boards to your PC via a USB cable.
2. Run PHPoC Debugger and click connect () button after choosing the right COM port.

3. Click the [Function] > [Smart expansion board information] menu.



4. On the [Smart Expansion Board Information] window, right-click the product and select the [Check for Updates].



5. Click [OK] after uploading F/W is finished.
